Performance Monitor

Dark

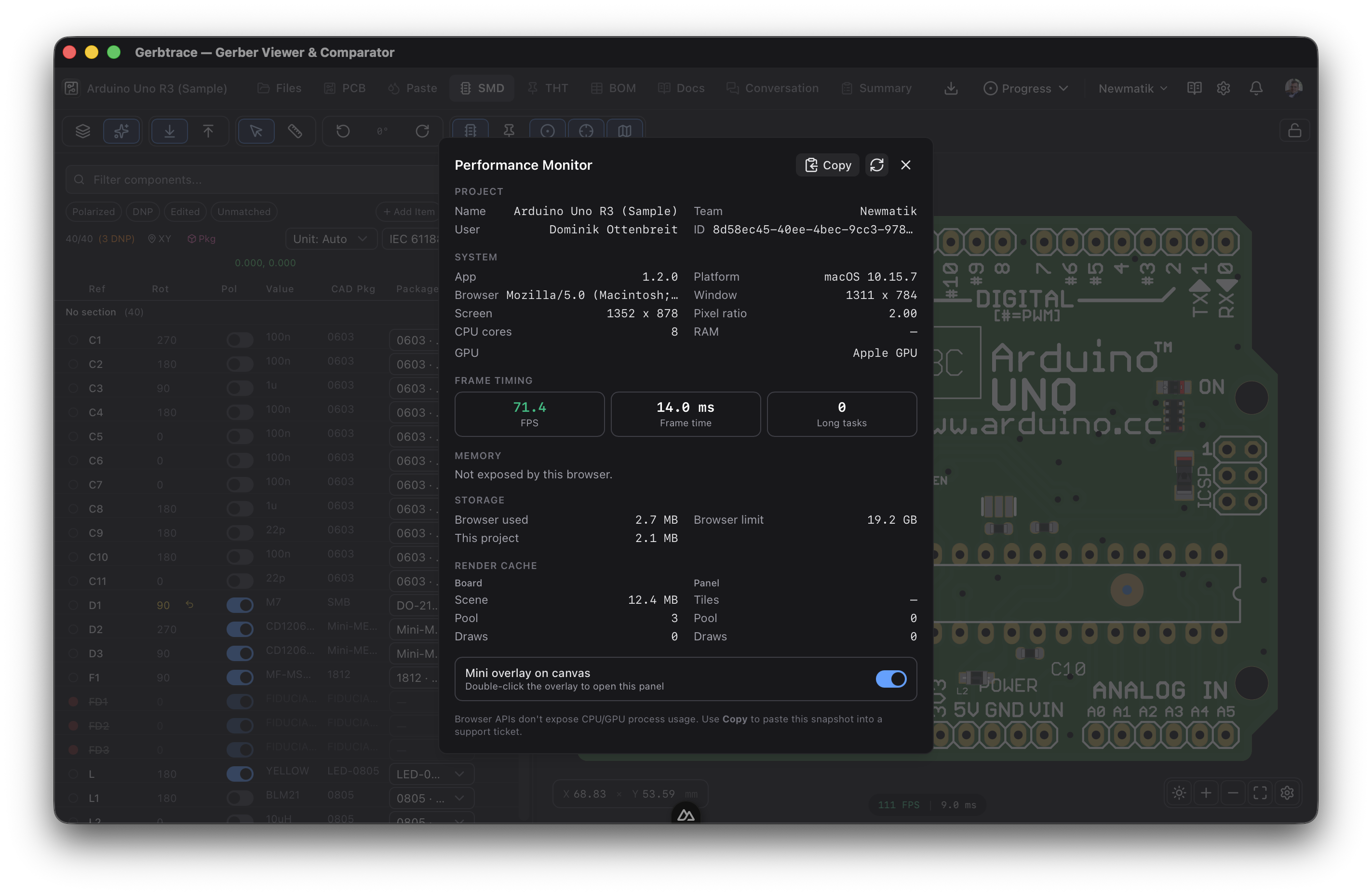

The Performance Monitor is accessible from the Settings menu (gear icon). It displays comprehensive real-time metrics to help diagnose performance issues and collect diagnostic data for support.

Project context

The header shows the current project name, team name, your user name, and the project ID. This context is included when copying stats.

System information

A summary of the current environment:

• App version – the running Gerbtrace version
• Platform – detected OS and whether you are using the web or desktop app
• Browser – browser name and version
• Window / Screen – window dimensions, screen resolution, and device pixel ratio
• CPU – number of logical cores
• RAM – estimated device memory (when available)
• GPU – WebGL renderer string
• Network – connection type and effective bandwidth (when available)

Frame timing

• FPS – approximate frames per second for canvas rendering
• Frame time – milliseconds per frame
• Long tasks – count of frames exceeding 50 ms in a rolling 30-second window

Memory

When the browser supports the performance.memory API:

• JS Heap Used – current JavaScript heap usage
• JS Heap Allocated – total allocated heap
• JS Heap Limit – maximum heap size

Storage

• Browser storage – usage and quota from the Storage Manager API
• Project size estimate – approximate storage footprint of the current project

Render cache

Internal rendering statistics:

• Board scene cache – cached canvas size
• Panel tile cache – number of cached panel tiles
• Canvas pool – active and idle canvas elements
• Draw counts – number of draw calls per frame

Mini overlay

Toggle Show mini overlay to display a compact FPS / frame time / heap usage bar at the bottom of the canvas. The mini overlay stays visible while you work. Double-click it to open the full Performance Monitor.

FPS values are color-coded: green (55+ FPS), amber (30–54 FPS), red (below 30 FPS).

Copy to clipboard

Click Copy to copy all performance stats as formatted text. This is useful for pasting into support tickets or bug reports alongside a Report a Bug submission.

When to use

The Performance Monitor is useful when:

• The canvas feels slow or laggy with a complex board
• You want to verify that rendering is performing efficiently
• You need to report performance data alongside a bug report
• You want to identify whether the bottleneck is GPU, memory, or network related

Close the monitor when not needed, as the overlay itself has a small performance cost.
