Pricing
The Pricing tab provides cost estimates for fabrication and assembly based on board parameters, BOM pricing, and quantity tiers. Use it to generate quick quotes or compare cost at different volumes.

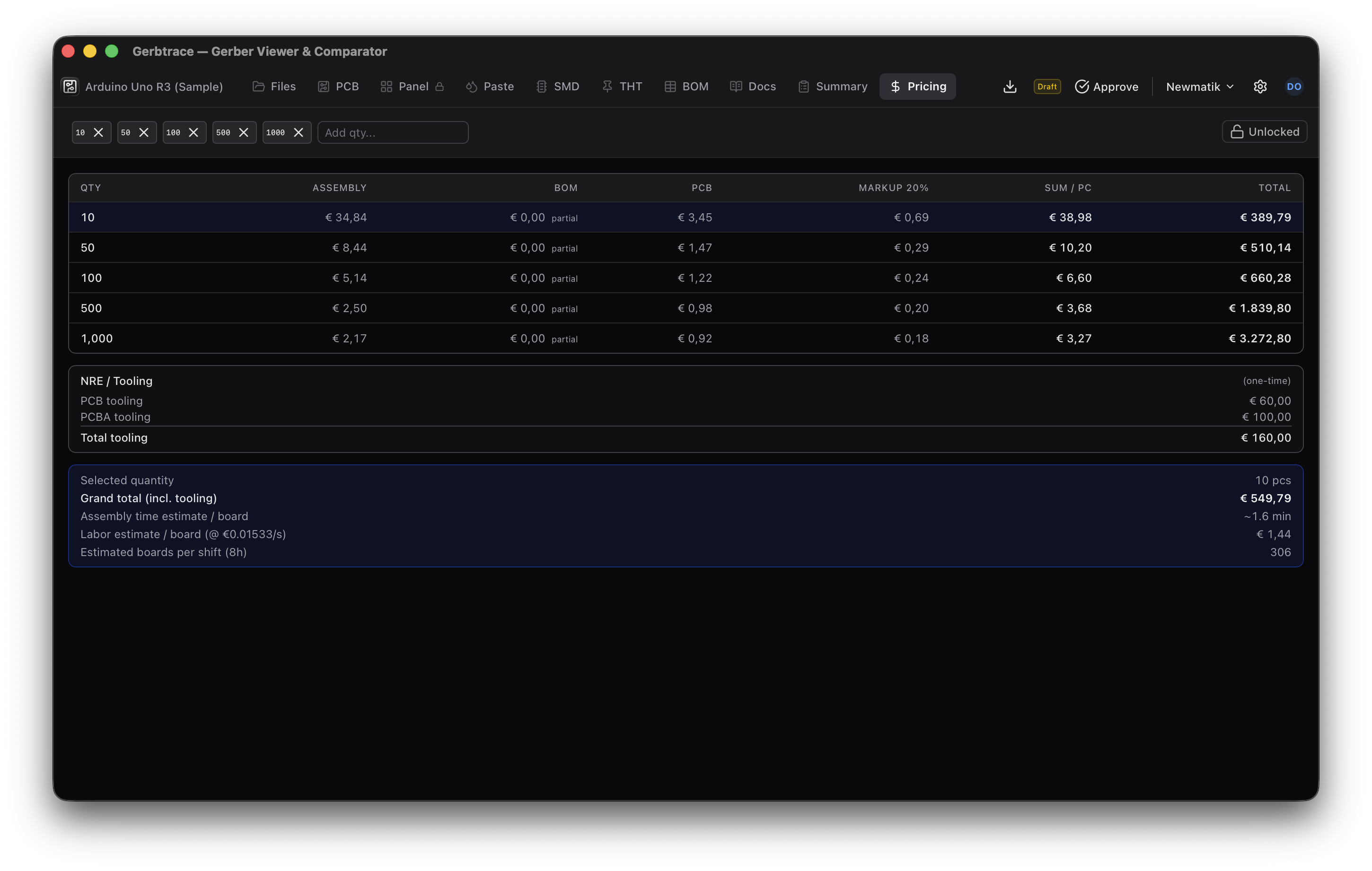

Quantity tiers
Add quantity tiers (e.g., 10, 50, 100, 500, 1000) using the input field at the top. Each tier shows a row in the pricing table with:
| Column | Description |
|---|---|
| QTY | Number of boards |
| Assembly | Assembly cost per piece |
| BOM | Component cost per piece (from BOM pricing) |
| PCB | Fabrication cost per piece |
| Markup | Configurable percentage markup |
| Sum / PC | Total per piece |
| Total | Grand total for the tier |
The selected quantity row is highlighted.
NRE / Tooling
Below the tier table, a section shows one-time costs:
- PCB tooling – fabrication setup cost
- PCBA tooling – assembly setup cost
- Total tooling – combined NRE
Grand total
The bottom section shows the selected quantity with the grand total including tooling costs.
Data sources
Pricing draws from several project inputs:
- Board parameters from the PCB tab (size, layers, material, finish)
- Component pricing from the BOM tab (Elexess API data)
- Panel configuration from the Panel tab (boards per panel)
Currency
Prices display in the team's configured currency (EUR or USD). Change the currency in Team Settings.
Lock
The Unlocked / Locked toggle prevents changes to quantity tiers. Use this when the pricing has been reviewed and should not be modified.
