Panel

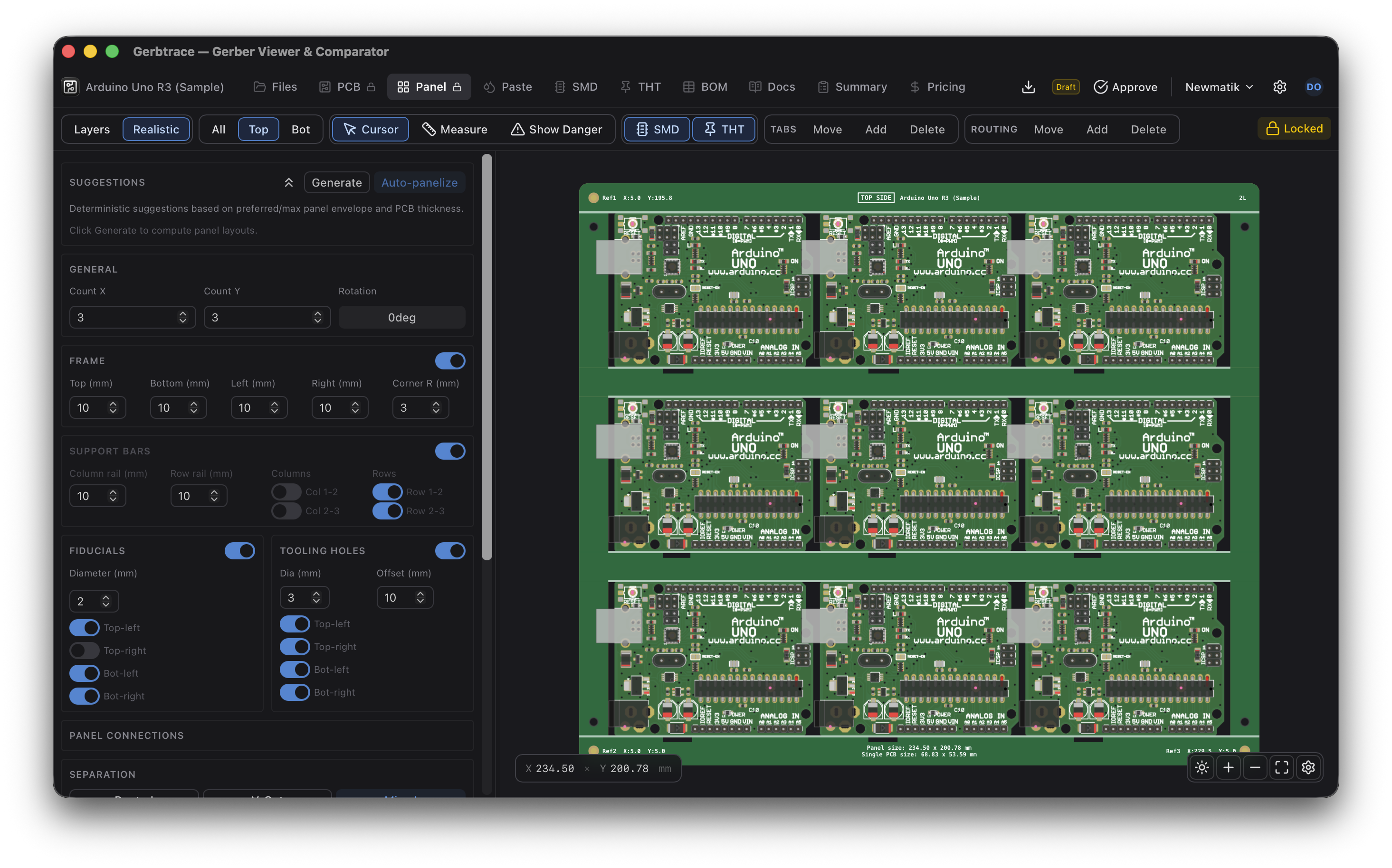

The Panel tab lets you define multi-up panel layouts for PCB production. Configure the grid arrangement, frame rails, fiducials, tooling holes, routing channels, tabs, and support bars – all with a live canvas preview.
Standard panel (AA-EN-034)
Apply AA-EN-034 (Newmatik standard) sets the whole panel to the Newmatik standard panel (document AA-EN-034, frame per DI-EN-164) for the current board:
- portrait panel: the boards in one row, long side along Y (a board whose long side is along X is turned 90° counter-clockwise), butted without a gap;
- V-cut between the boards and at the frame on both sides;
- 10 mm frame on all sides, square corners;
- three fiducials (top-left, top-right, bottom-left) 5 mm from the panel edges, Ø1.0 mm copper in a Ø3.0 mm mask opening, on both sides;
- three Ø2.0 mm tooling holes (top-left, top-right, bottom-left), 5 mm from the side edge and 12 mm from the top or bottom edge;
- the panel label (the label text, else the project name) in top silkscreen, 2 mm high, its centre 3 mm below the top edge.
The board count is the most boards that fit Max width (default 150 mm); the size of the resulting panel is shown next to it. Settings changed after applying the preset stay as you set them. Assistants apply the same preset with the MCP tool update_panel (preset: "aa-en-034").
Suggestions
Click Generate to compute panel layout suggestions based on your configured preferred and maximum panel envelope (set in Team Settings). The suggestion engine proposes grid configurations that maximize board count while respecting size limits. Click Auto-panelize to apply a suggestion.
General settings
- Count X / Count Y – number of boards in columns and rows
- Rotation – rotate individual boards (0 or 90 degrees)
The panel dimensions update in real time as you adjust values.
Frame
Enable a frame around the panel for handling and machine registration:
- Per-side widths – independent frame widths for top, bottom, left, and right edges
- Corner radius – rounded corners on the frame
Support bars
Support bars run between columns or rows to add structural rigidity:
- Column rail / Row rail widths – set rail width independently
- Selective placement – enable bars between specific columns and rows
Fiducials
Fiducial marks are used by pick-and-place machines for alignment:
- Diameter – fiducial pad size
- Mask opening – solder mask opening around the pad (default twice the pad diameter)
- Position – top-left, top-right, bottom-left, bottom-right (any combination)
Panel label
A line of text (for example code, title and revision: EMO-0024A LX-R2 261028-a) in top silkscreen, centred across the top frame rail, with a configurable character height. From top is the distance of the text's centre from the top panel edge (default: the middle of the rail). It is drawn with the stroke font of the draw tool, in capitals only, and exported into the top silkscreen of the panel Gerbers. The Panel tab warns when the label would print over a frame fiducial's mask opening or a tooling hole, or leave the top rail; so does the panel export.
Frame texts
The Panel tab and the panel PNG export also write information on the frame rails. These texts are not part of the panel Gerbers:
- a reference label next to each frame fiducial (
Ref1 X:5.0 Y:300.0, coordinates from the bottom-left panel corner); - in the top rail, the side (
TOP SIDE/BOTTOM SIDE) and the project name, unless a panel label is set; - in the bottom rail (top view), the panel and single PCB size and the copper information (
2L · Cu: 35µm (1 oz)).
The texts never print over each other, the panel label, a fiducial opening or a tooling hole. Where a text does not fit, it moves to another line in its rail or gets shorter: a reference label keeps its name and drops the coordinates, a long project name is cut off with …, the size lines become Panel: … and PCB: ….
Tooling holes
Tooling holes allow mechanical registration in fixtures:
- Diameter and Offset from panel edges
- Position – configurable per corner
Panel connections
Separation type
Choose how boards are separated:
| Type | Description |
|---|---|
| Routed | Routing channels with tab bridges |
| V-Cut | V-score lines for break-apart |
| Mixed | Different separation methods per edge |
Set the routing tool diameter and configure separation type independently for each edge (top, bottom, left, right).
Fill special contours decides what happens between a board that is not a rectangle (round, notched, cut-out) and the rectangle around it. On, that area stays panel material and the router follows the board outline, so tabs sit on the board edge. Off, the area is milled out and the tabs sit on the rectangle, where they hold nothing on a round board. It is on by default for V-cut and for any board whose outline is not a rectangle, and off for a rectangular board on a routed panel. When you switch it off for a board that is not a rectangle, the hint turns amber.
With it on, each tab bridges the 2 mm routing ring at the board edge, square to the outline: on a round or slanted edge the tab is turned to match. The panel Gerbers place the tabs and their mouse bites the same way, and the millings file holds the route of the ring: the board outline offset outward, drawn with the routing tool, the tool's edge on the board edge and round corners where it turns. The route stops at both sides of every tab. A tool narrower than the ring clears it in several passes, and where the next board is closer than the ring the passes keep a tool radius away from it. Where two boards share a channel it is milled once. On a mixed panel the route stays inside the board's rectangle where the board meets the frame or a support rail with a V-cut, and it never leaves the panel. When a board's ring passes no tab, the panel export warns that the route cuts it free. Without a closed board outline there is no ring route, and the panel export says so.
A notch that reaches into the board from one edge, deeper than the ring, is milled out when the routing tool fits into all of it: the canvas shows it cut, and the route runs round it and across its mouth, so the material in it comes out. A notch the tool does not fit into (a mouth, or a neck between wider parts, no wider than the tool) stays panel material, the route runs across it, and the panel export warns. Where a notch meets a corner of the rectangle (the corners round a round board, the missing corner of an L-shaped one) the area is the board's shape and stays material. A tab in a milled notch keeps a strip of it standing from the tab straight out to the frame; a tab that would split the notch into more pieces keeps all of it, and the panel export warns. Cut-outs inside the board stay in the board outline layer, which the panel Gerbers repeat for every board, and are milled from it.
Tabs
Tabs hold boards together within routed panels. Configure:
- Tab count per edge
- Tab width
- Mouse bite perforation – hole diameter and spacing for easy breakaway
Tab positions are managed visually on the canvas using the Move, Add, and Delete toolbar buttons.
With Move, drag a tab along its edge, or round a corner onto the next edge of the same board (or into the gap to the neighbouring board): it changes edge where a tab added at that point would go. On a round board this takes a tab from the top round to the side.
Added routing and part clearance
The Routing toolbar buttons (Move, Add, Delete) add extra milling slots in the frame rails and support bars. A slot snaps to fixed lines in the rails. While you draw, move or hover a slot, the canvas shows the shortest distance from the slot's edge to the nearest part, in any direction (across the slot and past its ends). The line and label are green at or above the Part clearance set in the Separation section (2 mm by default) and red below it. With Add on, the canvas also shows dotted snap lines that keep a slot exactly that clearance away from the boards.
The distance is measured to the box around each part's footprint, on every board and on both sides, DNP parts excluded. A part with no matched package counts as its placement point.
Component overlay
Enable SMD and THT component overlays on the panel view to verify that components do not conflict with tabs, routing channels, or frame elements.
Canvas controls
The panel canvas shows the full layout in real time. All sidebar edits immediately reflect on the canvas. Use the Show Danger button to highlight the keep-out inset zone near board edges.
Panel size warnings
If the panel exceeds your configured maximum size limits, a warning appears in the status bar. Configure preferred and maximum panel sizes in Team Settings.
