The PCB tab combines board parameter configuration with layer management and canvas tools. This is where you define the physical properties of your board and inspect the rendered Gerber data.

Board parameters

Configure the physical properties of your PCB at the top of the sidebar:

ParameterDescription
Size X / Size YBoard dimensions in mm (auto-detected from outline)
LayersCopper layer count: 1L, 2L, 4L, 6L, 8L, 10L, 20L
Base MaterialRigid, Rigid-Flex, Semiflex, Flex, or Other
Laminate or MaterialFR4, IMS CU, IMS AL, or Other
Copper Final Outer Thickness18–140 µm (1/2–4 oz) or Other
Copper Final Inner ThicknessShown only for 4+ layers (18–70 µm or Other)
Surface FinishENIG (Ni/Au), HAL (HASL), or OSP
ThicknessOverall PCB thickness
PanelizationSingle PCB or Panelized PCB mode

Soldermask, Via Cover and Legend

ParameterDescription
Soldermask on SidesBoth, top only, bottom only, none, special, or other
Soldermask ColorBuilt-in colors, or add / rename / delete custom #rrggbb colors
IPC 471 Via CoverVia protection per IPC-4761 (none through Type VII)
Legend on SidesBoth, top only, bottom only, none, or other
Legend ColorWhite, black, none, or other
Special InstructionsShown when any Other / Special option is selected, or when notes already exist

Soldermask sides must meet IPC SM840 Class H. Board size and layer count are auto-detected from imported Gerber data when possible. Auto-fill buttons appear next to detected values, letting you apply the detected dimensions or layer count with a single click. These parameters feed into the Pricing calculations and the Summary.

If the outline measures differently from the board's specification, correct Size X / Size Y here. The fabrication dimensions on the canvas and in exported images then print the corrected size, and their dimension lines span it too, centred on the outline. Size X always stays on the board's width and Size Y on its height, including on a square board and on a panel whose boards are turned 90°.

Pull from the ERP

Newmatik teams can fill a project from the ERP specifications of an assembly ordered before, the way the BOM tab pulls an approved BOM. The ERP spec bar above the board parameters (and on the Assembly tab) shows up only for teams the ERP connection is enabled for, in team projects you can edit.

  • Pull from ERP specification… – enter the ERP item code of the assembly (for example ITM-0017B-01B-DE-ST) or of the bare PCB (ITM-0017B). Gerbtrace reads the PCB Specification and the Assembly Specification of every step of that board. Draft specifications are read too and carry a Draft badge; cancelled ones are skipped.
  • Before anything changes, a preview lists every field that would change, grouped in sections you tick: PCB data (board parameters, soldermask, legend, confirmations), Panel, Assembly processes and Special instructions and assembly notes. ERP fields set to "Other (see special instructions)" or left empty keep Gerbtrace's value.
  • Panel is off by default: the ERP has single PCB or panel, the boards in the panel, the separation and the middle frames, not the full panel layout. When ticked, those replace the active panel version's values; frame, fiducials, tooling holes and tabs stay as they are. A panel connection Gerbtrace doesn't know ("Other") keeps Gerbtrace's panel, and a direction without a middle-frame count keeps its middle frames.
  • Special instructions are copied as text only into an empty field, without the standard headings (Panel Draft, Layer Stackup, …) and the panel-draft note. The full ERP text with its pictures (stack-ups, impedance tables, drawings) shows read-only under Special instructions from ERP, below the bar.
  • Refresh from ERP reads the same item again.

The project remembers which specifications it was pulled from; hover the bar to see their names and states.

Layer management

Below the board parameters, each imported Gerber and drill file is listed with:

  • Color swatch – click to change the rendering color
  • Layer type dropdown – reassign the layer classification
  • Visibility toggle (eye icon) – show or hide individual layers
  • Group toggles – show or hide all layers in a section at once

Rendering modes

The toolbar offers two rendering modes:

Standard mode

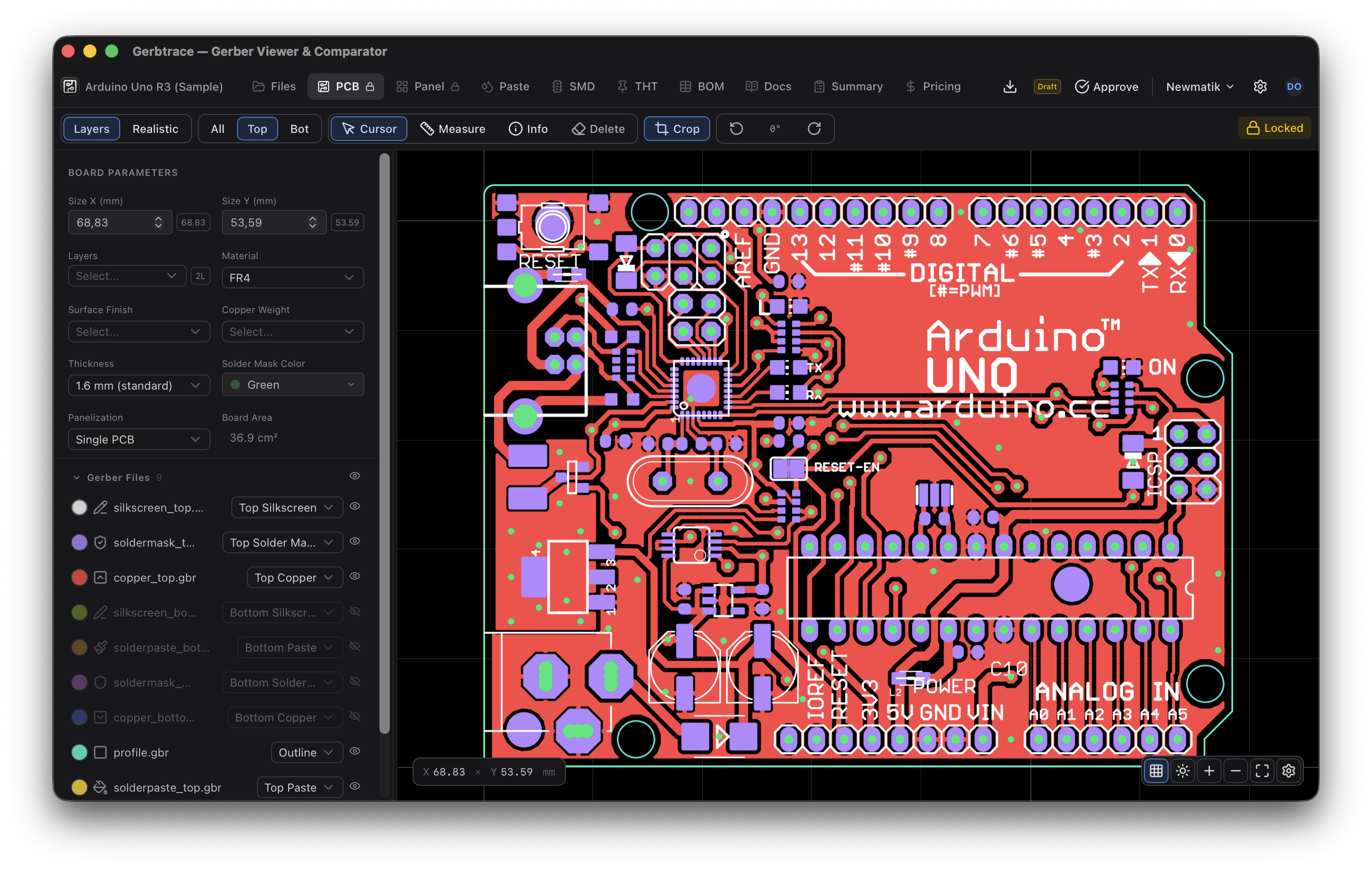

All visible layers are composited on a Canvas 2D view with configurable colors. This is the default for inspecting individual layers.

Realistic mode

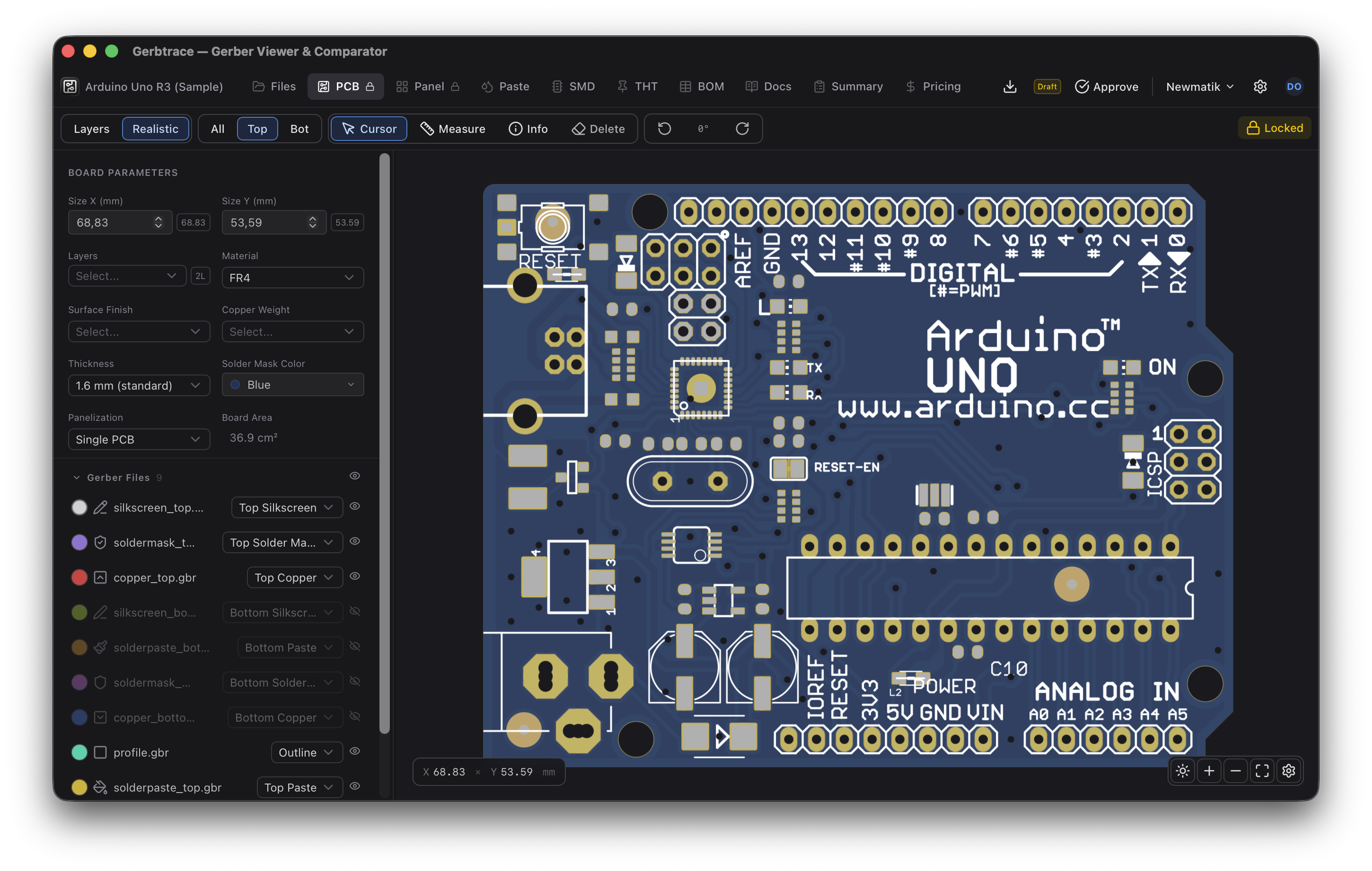

A photo-like rendering that simulates the physical PCB appearance. Realistic mode combines copper, solder mask, silkscreen, and paste layers with the configured surface finish and mask color. The All, Top, and Bot filter buttons control which side is shown.

Canvas tools

The toolbar provides these tools:

  • Cursor – default selection and pan mode
  • Measure – click two points to measure distance in mm. Constraint modes let you restrict measurement to Free (any direction), Horizontal, or Vertical
  • Info – hover or click to inspect layer elements and coordinates
  • Delete – remove individual drawing primitives from a layer
  • Draw – add geometry to Gerber and Excellon layers. See Draw Tool for full details
  • Crop – clip rendering to the board outline

Canvas controls

  • Pan – click and drag to move the view
  • Zoom – mouse wheel or +/- buttons
  • Fit to view – auto-zoom to show the entire board
  • Rotation – rotate the canvas view continuously (0–360 degrees)
  • Grid – toggle a reference grid overlay
  • Background – switch between dark and light canvas backgrounds

On the canvas tabs (PCB, Panel, Jetprint, SMD, THT, Coating) the left sidebar can be hidden to give the board the full width:

  • Click the panel icon at the left end of the canvas toolbar, or press Cmd+B (macOS) / Ctrl+B (Windows, Linux).
  • The choice is remembered on this device and applies to every project and every canvas tab.
  • Drag the handle on the sidebar's right edge to resize it; the width is remembered per tab. Double-click the handle to restore the default width.

Paste toggle

When the project has paste layers, the canvas toolbar shows a Paste button. Switch it off to see the board without solder paste, in both Layers and Realistic mode and on the Panel tab as well. This is a view setting remembered per project on this device: the paste layers stay in the project, the layer list is unchanged, and the Jetprint tab always shows paste. Image exports follow the toggle.

Lock

The Unlocked / Locked toggle prevents changes to board parameters and layer settings. Use this in team projects to avoid accidental modifications while others are reviewing the data.
