Compare

Comparison mode lets you import two Gerber packages and analyze the differences between them. This is useful for verifying design revisions, checking ECO changes, or auditing supplier-provided files against your source.

Creating a compare project

Compare projects are local-only — they are stored in your browser and cannot be created inside a Team. From the home page, click New Compare Project. You are prompted to import two file sets:

  • Packet 1 – the reference (original) design
  • Packet 2 – the revised or alternate design

Each packet can be a ZIP file or individual Gerber/drill files.

Layer matching

Gerbtrace automatically matches layers between the two packets by file name and layer type. If automatic matching produces incorrect pairings, you can manually re-match layers.

Identical file detection

Before running any visual comparison, Gerbtrace computes a SHA-256 hash of each file. Identical layers are flagged as unchanged so you can focus on the differences.

Quick comparison summary

The sidebar includes a compact change summary:

  • Routing changes – changed copper, outline, drill, or inner layers
  • Assembly changes – changed solder mask, silkscreen, or paste layers
  • Only Packet 1 / Only Packet 2 – layers that exist only in one packet
  • Matched / Identical counts – quick confidence check

Comparison modes

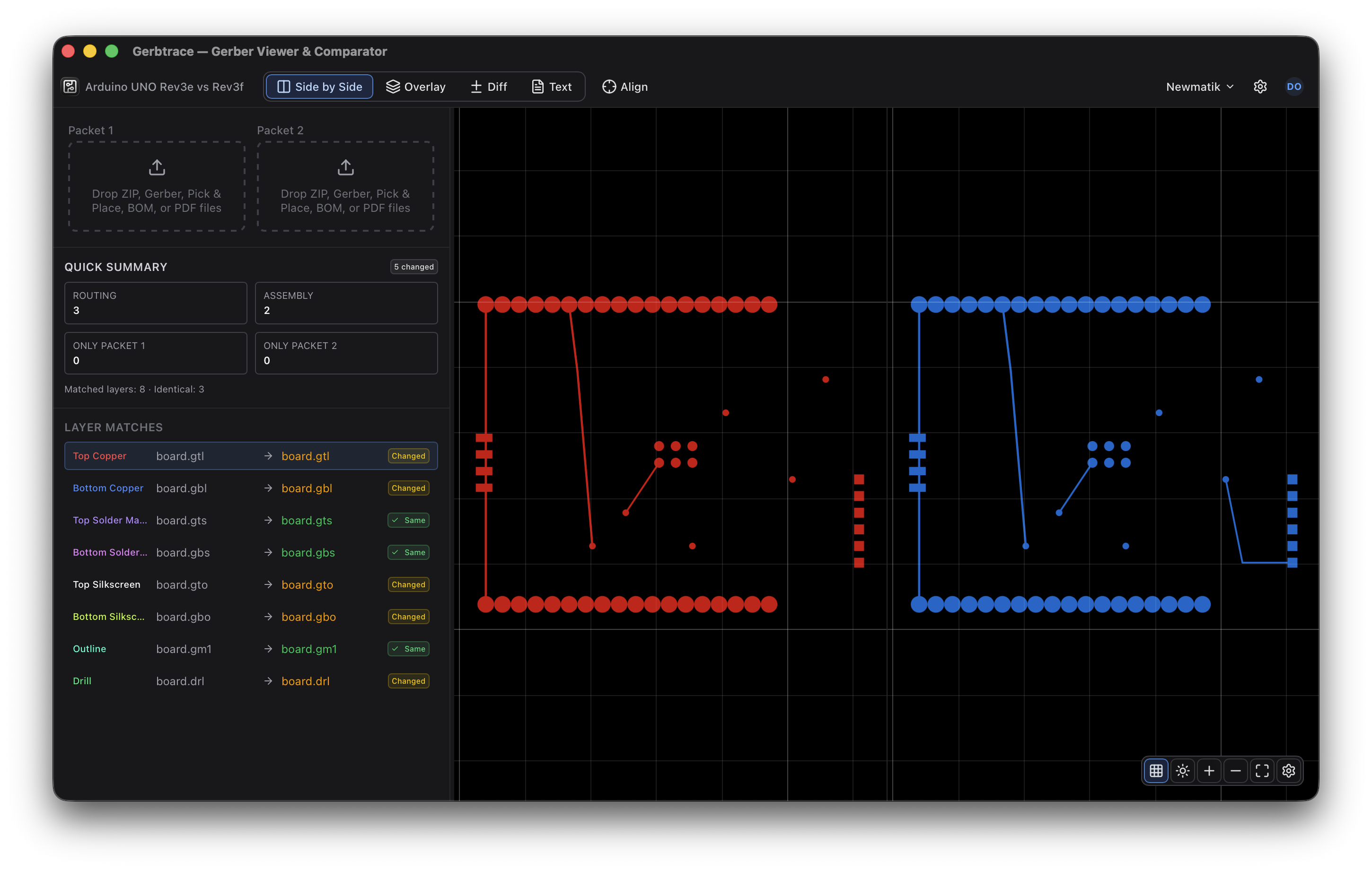

Side by Side

Two canvases with synchronized pan and zoom. Scrolling or panning on one side mirrors the other for direct visual comparison.

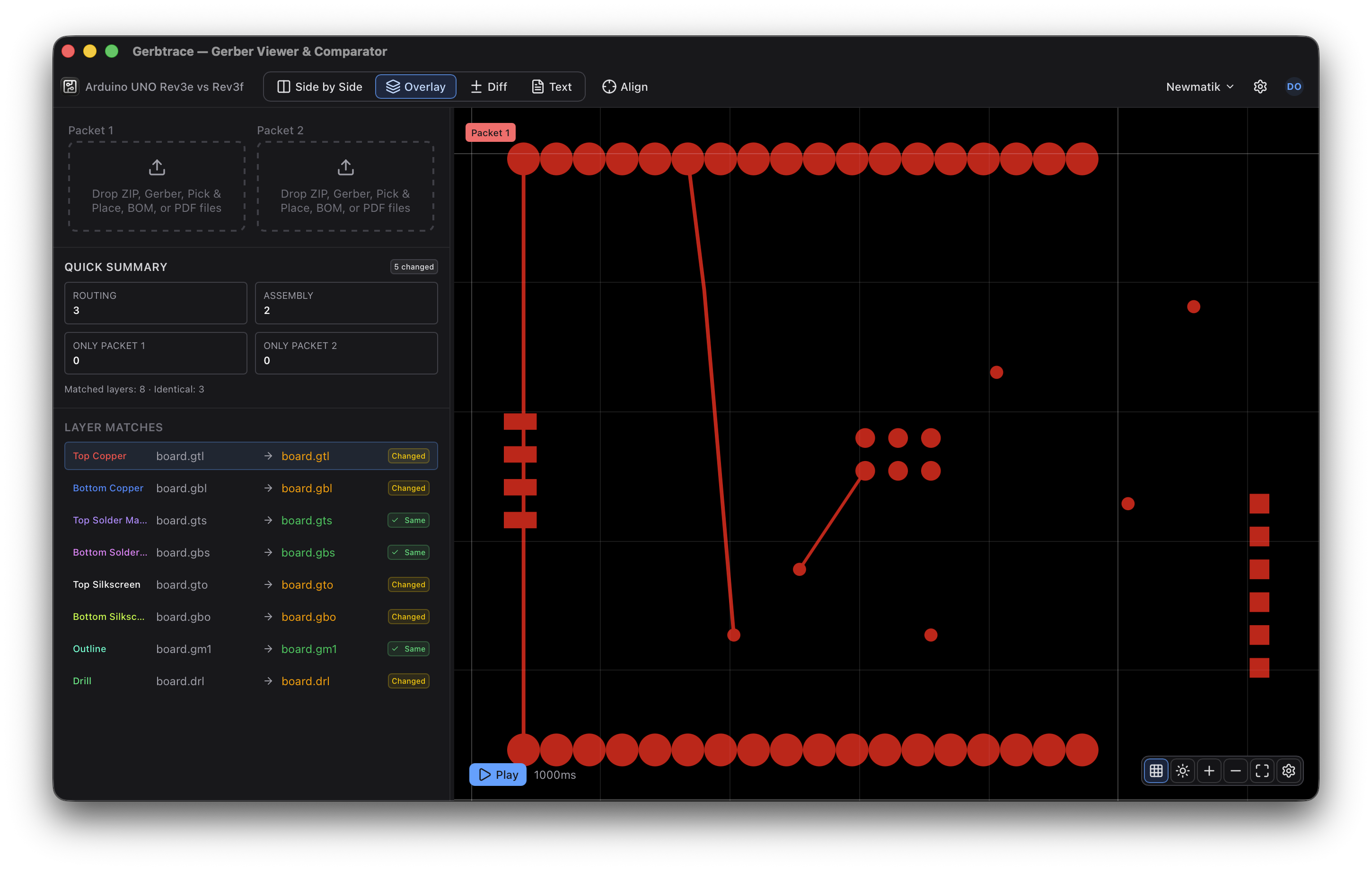

Overlay Toggle

Both versions on the same canvas, blinking between them at a configurable speed. Effective for spotting subtle geometry shifts or moved pads.

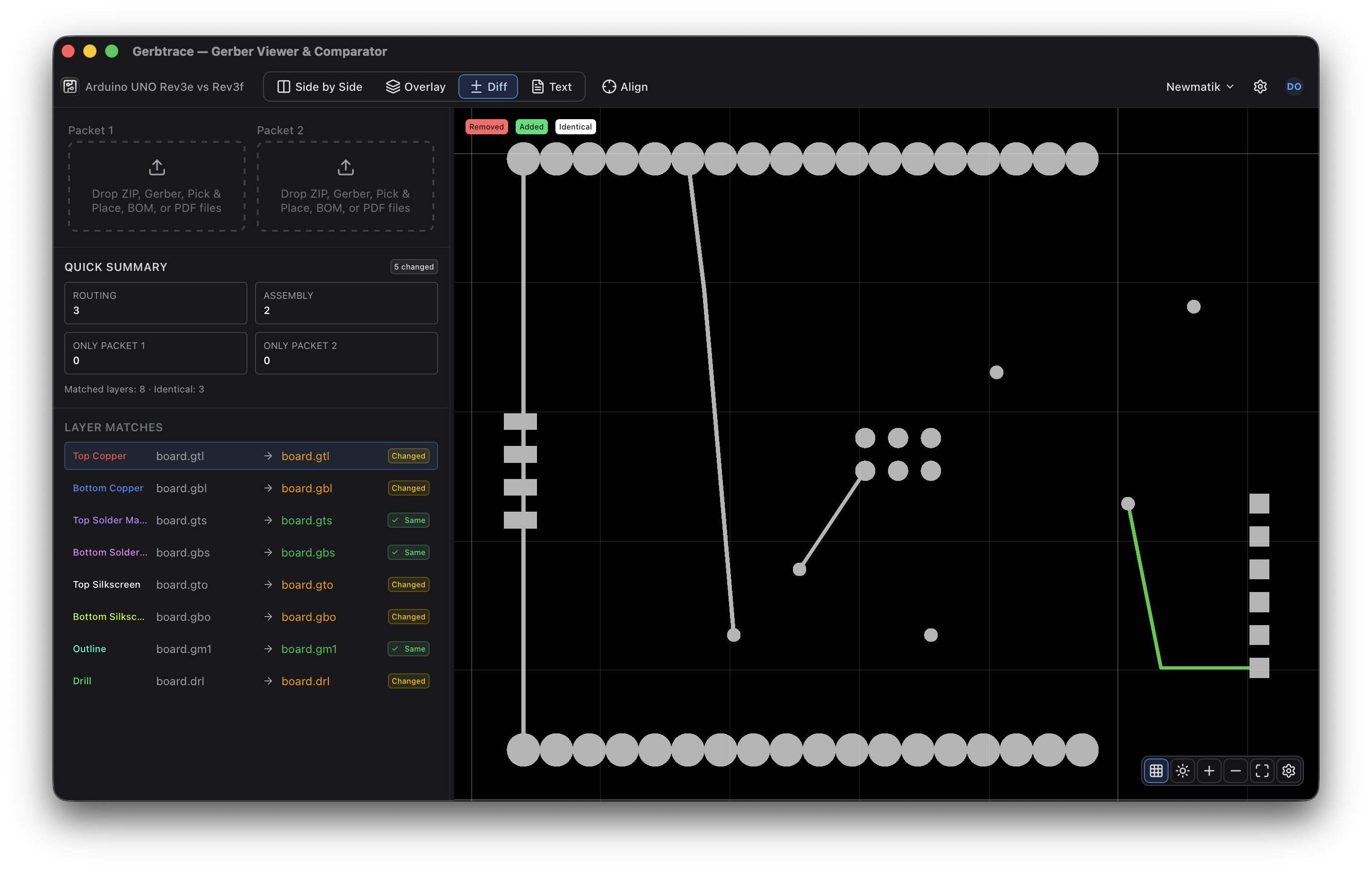

Pixel Diff

Pixel-by-pixel comparison:

  • Red – pixels only in Packet 1 (removed)
  • Green – pixels only in Packet 2 (added)
  • Gray – identical pixels

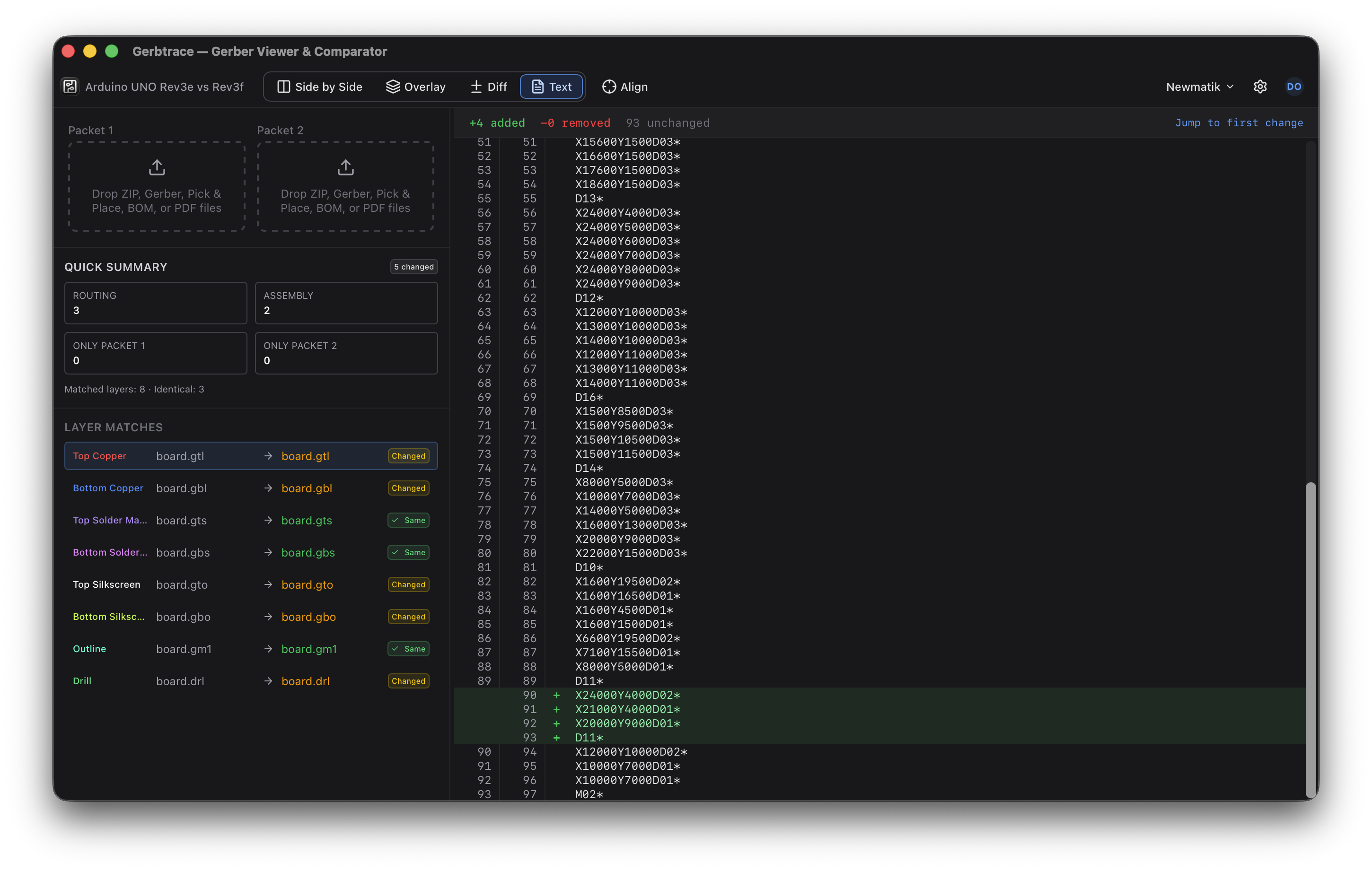

Text Diff

Line-by-line source comparison of raw Gerber text, similar to a code diff viewer. Useful for understanding exact command-level changes.

BOM revisions

When you select a matched pair of BOM files, the compare project shows a line-by-line BOM diff instead of the canvas. Text Diff still shows the raw file text. See BOM Revisions.

Pick-and-place revisions

A matched pair of pick-and-place files shows a placement-by-placement diff instead of the canvas: added and removed parts, side changes, moves and rotations. Text Diff still shows the raw file text. See Pick-and-Place Revisions.

Alignment

Two exports of the same board often use different coordinate origins, for example when they come from different CAD tools. When both packets have a board outline of the same size, Gerbtrace aligns them automatically at the lower-left corner of each outline. The Quick Summary then shows how far Packet 2 was shifted.

If the outlines differ, or you want to align on something else, use the alignment tools:

  1. Pick a reference point on Packet 1 (e.g., a pad or fiducial).
  2. Pick the corresponding point on Packet 2.
  3. Gerbtrace aligns the coordinate systems.

Reference points you pick replace the automatic alignment. Clear removes both.

Alignment matters most in pixel diff mode, where small offsets produce false positives.
