Summary

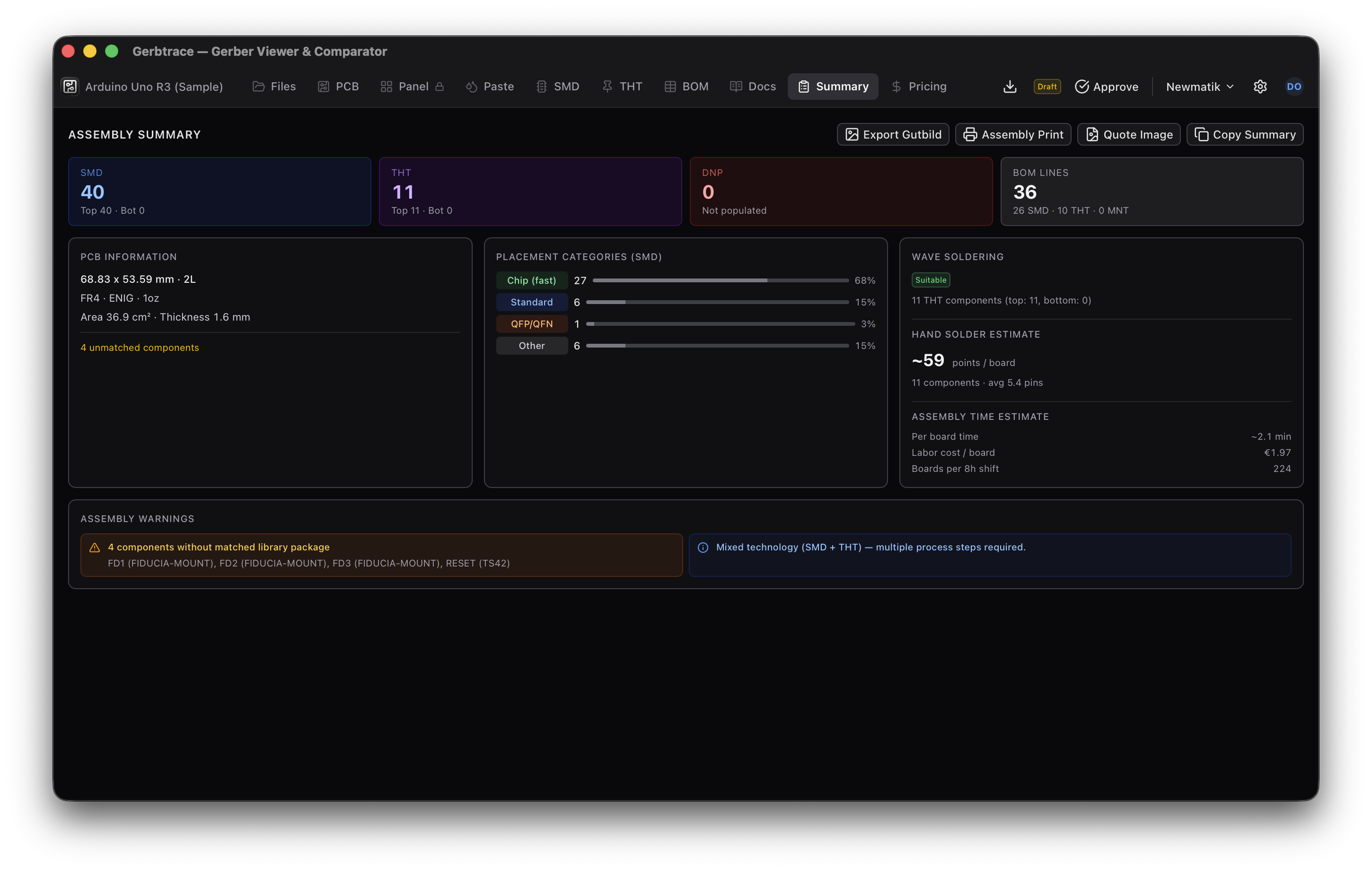

The Summary tab provides a comprehensive overview of the assembly at a glance. Use it to verify project completeness before production handover.

Component overview

The top row shows key counts:

  • SMD – total surface-mount components (top/bottom breakdown)
  • THT – total through-hole components (top/bottom breakdown)
  • DNP – components marked Do Not Populate
  • BOM Lines – total BOM lines by type (SMD, THT, MNT)

PCB information

A card showing the board parameters configured in the PCB tab:

  • Board dimensions and layer count
  • Base material, laminate, surface finish, copper thicknesses, and board thickness
  • Soldermask / legend sides and colors, and IPC 471 via cover
  • Board area
  • Count of unmatched components (with link to resolve)

Placement categories (SMD)

SMD components grouped by placement speed category:

  • Chip (fast) – passive chip components (0201, 0402, 0603, etc.)
  • Standard – standard IC packages (SOIC, SOT, etc.)
  • QFP/QFN – fine-pitch quad packages
  • Other – all remaining SMD components

Each category shows the count and percentage.

Wave soldering

A heuristic check indicating whether the board is suitable for wave soldering:

  • Suitable – all THT components are on one side
  • Conditionally suitable – some restrictions apply
  • Not suitable – THT on both sides or other blockers

The check considers component placement and board geometry.

Hand solder estimate

Estimated hand solder points per board: the pin counts of THT components assigned the Hand assembly type on the Assembly tab. Wave, mounting, cable, coating and delivered-loose parts are not counted. The component count and average pins per component beside it cover the same hand-soldered parts, and a per-type breakdown is shown when more than one assembly type is in use. This value is exported to the ERP as the number of hand-soldering pins.

Assembly warnings

Flags for production considerations:

  • Unmatched library packages
  • Mixed technology (SMD + THT) requiring multiple process steps
  • BGA components (X-ray inspection required, or a note that X-ray is switched off on the Assembly tab)
  • Fine-pitch components
  • Double-sided SMD placement

Copy Summary

Click Copy Summary to copy a plain-text summary to the clipboard for quotation documents or internal communication.
